Category Archives: Troubleshooting

URL Rewriting with WordPress

Filed under Troubleshooting, WordPress

imageI moved this blog from dasBlog to WordPress back around the middle of 2010. At the time, I had gotten pretty permalinks operational just fine. If you don’t know what pretty permalinks are, they’re essentially alternate URLs for the pages of a blog, that are nice and human readable, like www.vbfengshui.com/contact-me instead of www.vbfengshui.com?page=564.

However, just in the last few days, I noticed they weren’t working anymore.

What happened?

Unfortunately, this is one of those situations, where, as a developer and not a web admin, I don’t do this sort of thing often enough to really remember what I do to get things operational. Ask me about multithreading in MSSQL, or how to make the best use of an anonymous delegate in .net, no problem. But configuring WordPress!?! <g>

The problem was, any time I’d try navigating to a pretty URL (say www.vbfengshui.com/contact-me), I’d end up at a page saying

“the system cannot find the file specified”

Not much help.

Googling that error turned up a number of posts, most of which indicates that either .htaccess didn’t have the proper permissions, or that, under IIS, the URL Rewrite module wasn’t installed.

Unfortunately, I’m running hosted IIS, and my host doesn’t provide access to installing things like URL Rewrite.

So what had happened?

After more Googling, I came across this post on the ikailo.com site. The hint (or the reminder as the case may be) I needed was this comment in their 404-handler.php script:

The name of this file.
// Set this value for the URL in Custom Error Properties of your website in IIS.
// Goto: IIS Manager > Websites > [Site Name] > Properties > Custom Errors >
Aha! My host DOES allow me to edit custom 404 handlers, and checking that, I’d already configured it to /wp-404-handler.php. Hmm. Why wasn’t that working? I loaded up FileZilla and started looking around. Lo and behold, that file was no longer there!
Fortunately, the ikailo.com site provides a great little 404 handler script that works just fine with WP 3.2.1. I’m including it here:
// This is the default file for the site. Usually index.php
$default = 'index.php';

// The name of this file.
// Set this value for the URL in Custom Error Properties of your website in IIS.
// Goto: IIS Manager > Websites > [Site Name] > Properties > Custom Errors >
// 404 & 404;2 & 404;3 > URL (Requires a '/' prefix in IIS).
$thisfile = '404-handler.php';

$_SERVER['ORIG_PATH_TRANSLATED'] = str_replace($thisfile, $default, $_SERVER['ORIG_PATH_TRANSLATED']);
$_SERVER['SCRIPT_FILENAME'] = str_replace($thisfile, $default, $_SERVER['SCRIPT_FILENAME']);
$_SERVER['ORIG_PATH_INFO'] = str_replace($thisfile, $default, $_SERVER['ORIG_PATH_INFO']);
$_SERVER['SCRIPT_NAME'] = str_replace($thisfile, $default, $_SERVER['SCRIPT_NAME']);
$_SERVER['PHP_SELF'] = str_replace($thisfile, $default, $_SERVER['PHP_SELF']);
$_SERVER['PATH_INFO'] = false;

$pos = strrpos($qs, '://');
$pos = strpos($qs, '/', $pos + 4);
$_SERVER['URL'] = $ru = substr($qs, $pos);
$qs = trim(stristr($ru, '?'), '?');

// Required for WordPress 2.8+

// Fix GET vars
foreach ( $_GET as $var => $val ) {
  if ( substr($var, 0, 3) == '404') {
    if ( strstr($var, '?') ) {
      $newvar = substr($var, strpos($var, '?') + 1);
      $_GET[$newvar] = $val;

Just follow the directions at the top of the file and you should be good to go with nice URLs, even under IIS without the Rewrite module.

I’m guessing that an upgrade of WP at some point removed the old WP-404-Handler.php file. This one, I’ve saved as just 404-handler.php. No idea whether that’ll help to preserve it through the next upgrade but we’ll see.

Strange Behavior With SQL and Group By

Filed under SQL, Troubleshooting

imageI’ve been finishing out a rules engine over the last few weeks for a local law firm. Lots of very complex stored procs, tons of tables.

Anyway, in processing several test batches of records, I started noticing that jobs would “hang”. I left the process going for hours, and it never released.

Now, normally, I’d go straight for the deadlock detection stuff, but my rules engine (that invokes all the various rules necessary for the processing) already has error handling code setup to deal with deadlocks. This is because the processes are so complex, and will be running on multiple threads against the server simultaneously, so deadlocks are just about unavoidable to an extent.

But, in this case, I wasn’t getting deadlocks.

Alright then, had to be blocking. But firing up Activity Monitor, plus all the usual stored procs for evaluating blocking showed nothing. The Job was definitely running, though, as reported by the SQL Agent monitor.

Even more puzzling was if I forcibly stopped the errant job, my rules engine would kick in (as it’s supposed to), rerun the failed job, and it’d run right through, no delays at all.

And finally, the real kicker. I could reset the process, run the exact same set or records through the process, and sometimes a job would hang, other times, it’d run through perfectly fine.

Ah, random bugs!


After adding some logging, I was able to narrow down the hang to a specific TSQL query within a particular stored proc.

Granted, this is summarized somewhat from the full query, but basically, it looked like this:

into #tmp
from dbo.GetDefendants(@IDFilter) def
inner join player as pl on pl.ID = Def.PlayerID
group by ClientID, Defendant

The only peculiarity is the use of a UDF (the “GetDefendants” function) to retrieve a filtered list of rows from the “Defendants” table.

The actual tables involved aren’t particularly large (generally 1000 to 3000 rows and 20 or so columns, no image or text columns).

I then loaded up the SQL Trace utility, but also came up short. The trace indicated that the query in question was indeed being invoked, but then, nothing.

At this point things are starting to look grim. I could run the particular query manually from SSMS and it always worked properly, no hangs.

So, I started trying things. breaking the query up, pushing the joined tables through TEMP tables, etc. Still got the same hang, but still only occasionally.

I finally tried this alternate version:

into #tmp
from dbo.GetDefendants(@IDFilter) def
inner join player as pl on pl.ID = Def.PlayerID

into #tmp2
from #tmp

Note that the only real difference is that I removed the GROUP BY, and the MIN from the original query, pushed ALL the results into a temp table, then used the GROUP BY on the temp table into a second temp table.

And presto, no more hangs.

This definitely ranks up there with the weirdest SQL issues I’ve ever run into. I’m guessing it’s some combination of blocking, running the same queries (against different sets of rows) multiple times simultaneously (using multiple SQL Jobs), the fact that the server is an 8 core machine and SQL has parallelism turned on, and the use of Group By, but at this point, I haven’t been able to definitively say exactly what the problem is.

Word Headers/Footers and the LinkToPrevious

Filed under Office, Troubleshooting, Word

imageIf you’ve had to work much with Word’s Object Model, either from VBA macro scripts or C#/VB.net projects, you’ve probably dealt with Headers and Footers at one point or another. And Headers and Footers can be particularly convoluted things in Word.

I’m not going to try explaining the whole “three objects, but some exist and some don’t, and you have to jump through hoops to see them” issues of Headers and footers, but rather focus on one small element: LinkToPrevious.

As the name suggests, the LinkToPrevious property indicates whether the header or footer for a particular section is “Linked to” the same header/footer of the previous section. When linked, changing the header/footer of either section automatically changes the other, which makes sense.

Often, when scanning through the sections of a document, you’ll need to adjust headers and footers, to a common pattern in code is to check the LinkToPrevious property and if true, skip that header/footer. The reason is because, since it’s linked to the immediately previous section, and you’re scanning through all sections starting at the top, you’ve already processed it. Makes sense.

Except, that the LinkToPrevious property should NEVER be true for the header/footer of the FIRST section.

But it can be!

To prove it, create a document with two sections, set the header for the second section to “LinkToPrevious” true. Then delete the first section. If you do it right. You’ll end up with a single section document whose header is set LinkToPrevious True. Technically, this shouldn’t be possible and it certainly isn’t correct.

The end result is that if you’re scanning headers/footers like this, you have to check LinkToPrevious on all sections except the first.

WindowsXP periodically disconnects from Windows7

Filed under Networking, Troubleshooting, Windows 7

Very strange, and utterly frustrating issue recently.

After I got hit by lightning, I ended up replacing an Iomega NAS storage server with a simple Win7 box running 2 raided 2TB harddrives. It was a quick build and was a little cheaper than an equivalent 4TB Iomega unit, plus it’s running real Windows, so I can do more stuff with it.

But, I’ve got several XP Virtual Machines (under VMWare Workstation), that would, very consistently, disconnect from the Win7 “server”.

I googled for days, and tried at least a dozen different suggestions but none worked.

Essentially, if I rebooted the Win7 machine, the XP machines could connect to and work with the server for a while. But eventually, the WinXP machines would loose connection to the Win7 machine and the ONLY way to get them connected again was to reboot the Win7 machine.

The main problem was that the failure was very generic: something along the lines of “The server does not have enough resources to complete the request”.

Not much to go on.

On a whim, I happened to check in the event log at one point and came across this:

Source: srv
Event ID: 2017
Level: Error
The server was unable to allocate from the system nonpaged pool because the server reached the configured limit for nonpaged pool allocations.

Googling “srv error 2017” turned up a number of new suggestions I hadn’t seen before, but one in particular on Alan LaMielle’s blog looked very promising, though he was talking about connected via SAMBA.

The Bottom Line

In a nutshell, the problem is that if you use a “normal” version of Windows more like a server (lots a machines connecting to it for files), normal Windows installs aren’t configured for that.

You need to change 2 registry entries (on the SERVER machine, in my case the Win7 machine):

HKLM\SYSTEM\CurrentControlSet\Control\Session Manager\Memory Management\LargeSystemCache

should be set to ‘1’, and:


should be set to ‘3’.

Then, either reboot, or use the Services control panel to restart the ‘SERVER’ service.

Since I’ve done that, I’ve connected several XP systems up, and run full backups overnight without a single hiccup.

Word and the Disappearing Cell

Filed under Office, Troubleshooting, VB Feng Shui


So I was off working on a new bit of code today when an email came through:

“The tool is blanking out a cell when it’s not supposed to!”


No big deal though. I fire up the project, load up the document in question and give it a run.

Sure enough, a cell that contains some text and a merge field (under my control) is being completely cleared out. Only the merge field should be being cleared.

I dig a little more and eventually narrow the culprit down to a single function.

Private Function MyFunc(Rng as Range)
End Function

When I hit that Rng.Delete line, the ENTIRE CELL was being cleared. Including text that had nothing to do with my merge field (other than the fact that it was also in the same table cell).

After a bit more single stepping through code, I discovered that the Range being deleted was actually empty. In other words, it’s Start position was the same as it’s End position.

Now, I’ve know from dealing with Word for far too many years that when you’re working with an empty range like that, there are a good number of things that don’t work quite right. Many will throw errors, but I was getting no error here.

Then it hit me. As a test, I added a few chars of text at the VERY END of the cell, after my merge field.

Sure enough, everything worked, even though the range being deleted was still empty.

The End-of-Cell Marker.

Word stores an End-of-Cell marker character at the end of each cell in a table. The marker is a Chr(7) if you retrieve it, but you wouldn’t normally ever even bother with it.

However, if you end up with an empty Range object that is situated right at the end of a cell, then that Range is effectively pointing at the End of Cell marker, and if you invoke the Delete method on the Range, you’ll end up invoking it on the End of Cell Marker.

And what happens if you try and delete an End of Cell Marker?

Well, duh. The cell is cleared.

Moral of the Story

The short version of all this is simple:

If you plan on deleting a Range, make sure that the Range.Start <> Range.End before you do:

If Range.Start <> Range.End Then
End If

Technically speaking, if start = end, then there’s nothing in the range anyway and so there shouldn’t be anything there to delete. But doing so can definitely have detrimental effects in some cases.

And, as usual, your mileage may vary.

When Debug.Print Doesn’t Work Anymore

Filed under .NET, Troubleshooting, VB Feng Shui

This is one of those “back to basics” posts that, none-the-less, tripped me up for a few minutes, just because it’d been so long since I’d even looking at the setting involved.

I’d been working on a project for a while, when, one day a few weeks back, debug.print just stopped working. Even weirder, when I’d debug, the debugging would completely skip over the Debug.print statement.

When it first happened, I was right in the middle of working through some other problem and didn’t want to get sidetracked. But it hit me again a few weeks later, and I decided to start looking around.

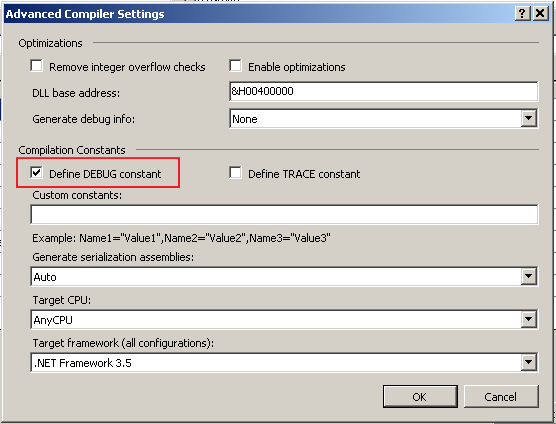

It didn’t take long before I realized this setting was amiss.


It’s checked in the image above, but in my project, somehow it’d become UNCHECKED, and in the Debug project configuration!?

Still not sure how that happened, other than probably got a little click happy one day with the mouse and didn’t realize it.

Amazing how the little things can still get ya’ sometimes…

(and nobody say anything about my dll base address <g>! )

Old School Binary File Manipulation, Or Code Page Encoding Gotchas

Filed under Troubleshooting, VB Feng Shui

So, I was working on parsing a WordPerfect Merge DAT file today…

Yep, you read that right, WordPerfect! Seriously old school stuff.

Anyway, this file format is a peculiar binary format with a bunch of binary headers surrounding all the nice juicy ASCII merge text fields. Dealing with such files in VB6 was easy, but it seems that the few times I’ve had to work with this type of thing in .NET, I always end up stubbing my toe on encoding.

You see, all strings in .NET are UNICODE, and reading binary data like this into a string involves an encoding or decoding process. In order for things to work the way you’d (or at least, I’d) expect them to, you have to be SURE that the strings will round trip properly. And boy, they weren’t for me.

I wrestled with it all day, finally knocking off to go home and unwind.

But it was still bugging me.

So I whipped up this little sample (why didn’t I think of this at noon today<sigh>).

    Private Sub TestEncode()
        Dim b(255) As Byte
        For x = 0 To 255 : b(x) = x : Next

        Dim buf As String = System.Text.Encoding.Unicode.GetString(b)

        Dim c(255) As Byte

        c = System.Text.Encoding.Unicode.GetBytes(buf)
        For x = 0 To 255
            If c(x) <> x Then Stop
    End Sub

If the code stops at that stop in the last FOR loop, something didn’t round trip properly and you’re pretty much guaranteed a headache.

And sure enough, the UNICODE encoding object failed to round trip. But so does the ASCIIENCODING, UTF8, etc etc.

On a whim, I tried the “default” object, SYSTEM.TEXT.ENCODING.DEFAULT.

And it worked!

A quick check revealed that on my system, DEFAULT is actually the encoding object for the codepage 1252, which is the Windows ANSI ASCII encoding. Read more about it here. But 1252 is the codepage you want to use if you want EVERY SINGLE binary value from 0-255 to map to the exact same unicode character when you read the file into a string.

Long story short, if you’re used to looking at binary files via a hex editor, and you want to manipulate those files in VB, you have two choices.

  1. Read the file into a BYTE() array as raw data, then operate on the bytes directly.
  2. Read the data into a string, but be SURE to use the proper encoder, like so:
Dim Buf as String= My.Computer.FileSystem.ReadAllText(MyFileName, System.Text.Encoding.GetEncoding(1252))

Option 1 is great if you need to work on the data as, more or less, strictly byte type info. But it’s a real pain if much of the data is string type stuff.

Option 2 is MUCH easier to work with for mostly string data (you can use INSTR, MID, LEFT, RIGHT, cutting and chopping much more easily than with byte arrays), BUT you have to have read the data in via the right encoder or it will be “altered” during the loading process and won’t contain the same bytes that were actually in the source file.

Doing this won’t work:

Dim Buf as String= My.Computer.FileSystem.ReadAllText(MyFileName)

Because the ReadAllText routine uses, as its default, the UTF8 encoder.

Hopefully, putting all this down in writing now will keep me from forgetting about it the next time I’m mucking with funky file formats!

Hunting Down a Bogus IP

Filed under Networking, Troubleshooting

I was working on a server issue this morning when I ran into something strange. I could no longer access a server that had been running for quite some time without any problems.

I tried a PING and got back an IP address for the server that made no sense at all. It wasn’t even part of my local IP range!

So I did all the normal stuff:

  1. Checked my HOSTS file

No joy. A ping was still returning the same bogus address.

So I checked my server’s DNS service. Not even an hit of that address.

Hmmm. So, where the heck was it coming from? A little googling didn’t turn up much, but eventually, I read a blog post that made an offhand mention of WINS.

Now, I don’t really know all that much about WINS. Just never had a reason to, I suppose. Mostly, I’ve always relied on and stuck with plain DNS. But, Ok, I’ll check it.

Go over to my server, and load up the WINS app (it’s under Admin tools)


The left hand window was completely blank. It took a second to realize I had to “query” to retrieve the WINS records, they aren’t automatically just shown.


And AHA! There, in the result list of “Active Registrations” was the bogus address for my server. (I’ve already removed it in the image below, but it was in the highlighted column).


Case closed. I’m still wondering what changed that suddenly, WINS was being used to resolve the server name when it must have not been before. The only thing I can think of is changing internet providers to Verizon FIOS from Time Warner Cable, and the resulting swap out of the main incoming router.

Granted, for a seasoned network guy, this is likely old hat. But for a software dev who only moonlights as a network guy, it might be some useful information!

Flipping Video with DirectShow

Filed under .NET, Media, Troubleshooting, VB Feng Shui

If you haven’t checked it out already, DirectShowLib.net is pretty much THE way to get at direct show functionallity in VB.net (that is unless you want to spend $$$). Thing is, it’s only a paper thin wrapper over the DirectShow COM api stuff, so there ain’t no hand holding here.

I’d mucked with it for a while and with the help of some of the sample code, got video playing in a form in VB.net fairly easily, but, I needed to flip and/or rotate that video under some circumstances.

After many googles, I finally came across the IVMRMixingControl9 interface that the VideoMixingRenderer9 exposes, but, no matter what I did, I could not cast from a VMR9 to the MixingControl, like so:

Dim Mixer = DirectCast(VMR9, IVMRMixerControl9)

I kept getting an “Interface not implemented”. Then I happened across a post about a wholly different problem, but buried within it was a comment about needing to set the VMR into “mixing mode” in order for it to implement that IVMRMixingControl9 interface. Ugh! DirectShow is nothing if not interfaces. And odd dynamically implemented interfaces at that. Oh well.

A little more digging, and it turns out to be quite easy. Just obtain the IVMRFilterConfig9 interface from your VMR9 object, and call SetNumberOfStreams on it (with and argument 1 or more).

The end result is code that looks like this (remember, this is with a reference to DirectShowLib.net):

DIM FGM = New FilterGraph
Dim VMR9 As IBaseFilter = New VideoMixingRenderer9

FGM.AddFilter(VMR9, "Video Mixing Renderer 9")
Dim FC As IVMRFilterConfig9 = VMR9

Dim Mixer = DirectCast(VMR9, IVMRMixerControl9)
Mixer.SetOutputRect(0, New NormalizedRect(1, 1, 0, 0))
Mixer.SetAlpha(0, 0.2)

Note that in this case, the SetOutputRect is reversing the output rectangle, so the video is going to end up flipped and upsidedown, exactly what I was needing. I’ve also set the alphachannel to .2, meaning the video is somewhat transparent.

Unfortunately, there doesn’t appear to be any way to rotate the video using the MixingControl, so that is my next topic of research.

Moving to Windows 7

Filed under Troubleshooting, Windows 7

image My system had been getting less and less stable recently, to the point where I’d blue screen and crash the entire machine while just browsing the web in FireFox.

So, when in came up that I’d need to have access to a 64bit OS, I finally decided to pave this machine and lay down a bright and shiny new Windows 7 installation.

Of course, doing so meant a couple of things.

  1. I had to make sure I had my old system available, just in case I needing any config files or whatnot. I keep all my data on a network server so that’s never been an issue. I used wbadmin (the Vista backup utility) to create a full VHD image of my Vista installation to a USB drive for this purpose.
  2. I did not want to wipe out my current raid, even though I had the backup. So I picked up 2 1.5TB Samsung drives to form a new RAID1 array.
  3. My mobo is the Intel Bad Axe 2 (D975xbx2), so it actually has support for the Intel ICH7 Sata raid controller and the Marvell Raid controller. Both can control up to 4 drives, so I figured I’d install the two new drives on the Marvel controller, leaving the existing Intel raid alone for now.

Problem 1

Unfortunately, idea 3 was my first problem. I couldn’t get Win 7 to see the Marvell raid. I spent the better part of a day fiddling with it, before I took the chance and disconnected the drives on the Intel raid. Sure enough, suddenly, the Win 7 installer could now see the Marvell raid.

Problem 2

My joy quickly soured though, when, about 20 minutes into the install, I got a message that the installation was “unable to read installation source files”. That’s it.


Could the CDRom image I burned be bad? Nope: a verify confirmed it was fine.

Maybe the raid array had problems? I reattached my Intel raid, booted Vista, and I could see the Marvell raid drive just fine. I scanned it anyway. Not a single problem.

Maybe I didn’t have the right F6 drivers for the Marvell controller? Some googles turned up that there was in fact, problems with the version of those drivers that Intel makes available, but even the older drivers direct from Marvell resulted in the same error.

Maybe my bios needs an update? Mine was several years old so I pulled the latest and uploaded. Still no dice.

With most of weekend gone, I decided to through a hail mary and try connecting the 2 samsung drives to the Intel raid controller ports. The concern was that, if I disconnected two of the existing raid drives on that controller, would I be able to boot back to the old raid if things still didn’t work? Or would the old raid be toast?

Deep breath, unplug the old, plug in the new, fire up the install, and…

It worked!

Problem 3

Way back, the main issue with 64bit Vista was I had no way to connect to our companies Cisco VPN with it. Well, I still couldn’t find Cisco 64bit drivers, and the 32bit versions won’t install into Win7 64. But, I’d come across the Shrew Soft VPN client before, so I thought I’d give it a shot.

I did need to dig up my Cisco configuration file, but once I found and imported it into Shrew Soft, I was connected first attempt. Pings to servers worked. Connected!

Problem 4

Toolbars. Little thing, granted, but I have run with a toolbar auto hidden on the left, as well as the taskbar at the bottom for ages. It’s comfortable and it put everything I typically use right there.

And Win 7 dropped that feature!

Yep, a feature that’s actually useful and MS drops it. Sigh. In reality, that decision seems to be getting quite a lot of bad blog, so I’m not alone in my sentiments anyway.

Fortunately, a feature in a program I’ve used for quite some time came to the rescue. The program is True Launch Bar from Tordex. I’ve written about TLB before, actually. It’s come in handy for a variety of purposes. For the past few years, when I’ve needed a handy gizmo and thought I’d have to download yet another widget, 9 times out of 10, TLB could already do the job.

This time, I used their “Standalone” version (included with the base package) to duplicate the functionality of the disconnected side toolbar, even though Win7 doesn’t support it directly.

If you like having a highly configured taskbar/toolbar, I (again) highly recommend True Launch Bar. It’s not free, but it’s cheap, and well worth the price.

Taming my Desktop Icons

One last note about my configuration. In the process of setting things up, I came across Fences by Stardock. It’s free. It does one thing, but it does it very well indeed.


Essentially, it allows you to “group” your desktop icons, and they stay in those groups, unlike under normal circumstances, where changing desktop resolution, or other things will tend to scramble your carefully arranged icons quite often.

It actually works on OS’s from Win 7 back to XP. Check it out.

A Minor Incompatibility

I’ve use DiskMapper by MicroLogic for ages. It’s a wonderful way to visualize your disk space usage. Yes, there are similar alternatives out there (like Zero Assumption’s Disk Space Visualizer), but I always seem to come back to DiskMapper.

Well, I tried the install and got an “incompatible application” error. Something about being a 16bit app. Yikes! 16bit!

Well, I pulled my DiskMapper installation files (post install) from the backup image I made, ran the app itself, and, after a quick paste of my registration details, I was up and running. So it would appear that the incompatibility was with the installer and not the app itself. Good news. And another good reason to make sure you have a full backup of your original system before making a switch like this.

And What About Win 7?

I’ve only been using it for a few days, so I’ll reserve some judgment for now. But I will say it feels a bit snappier, plus having the full 4gb ram usable (as opposed to only about 3.4gb under a 32bit os), is definitely a plus.

The ability to mount VHD files directly via the Logical Drive Manager is great. It’s my understanding that you can actually boot the machine into a VHD as well, but I haven’t tried that out yet.

Other than that, it really feels more like Vista SP2 than a really new OS.
